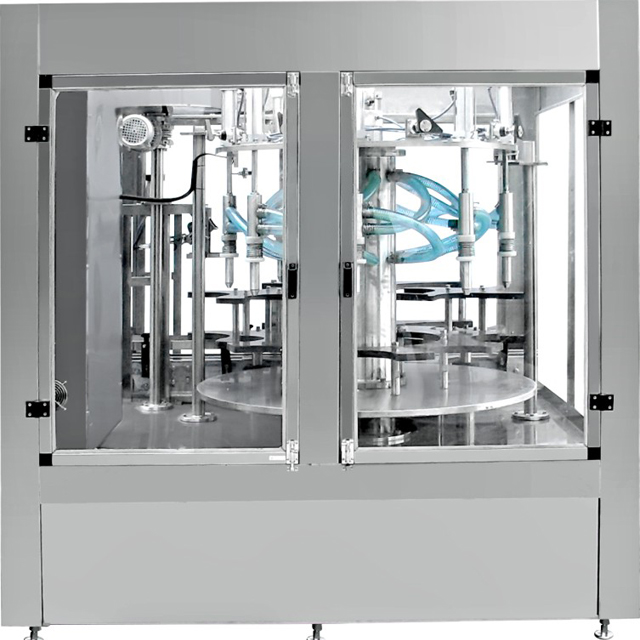

Three in one beverage filling machine

Machine Introduction

This machine is mainly used for filling water and beverages. This machine is a normal pressure filling machine that combines three functions: flushing, filling, and capping. The entire process is automated and suitable for filling juice, mineral water, and purified water in polyester and plastic bottles. With a temperature control device, it can also perform hot filling. The applicable bottle shape adjustment of each part is achieved by rotating the handle, which is easy, convenient and fast. This machine adopts PLC control for automatic operation, and the bottle feeding chain is adjusted by a frequency converter, which cooperates with the host frequency converter to make the bottle feeding operation more stable and reliable. The operation status of each component is detected by photoelectric detection, so the degree of automation is high and the operation is simple.

On this basis, by changing the filling part, low vacuum filling method can be adopted. Low vacuum filling method, suitable for glass bottles, filling materials such as alcohol and juice. The sealing method can be optionally equipped with aluminum metal anti-theft caps and plastic caps. It is the ideal first equipment for beverage manufacturers.

---

Machine features

1. This machine adopts the direct connection technology between the air duct and the bottle feeding wheel, eliminating the bottle feeding screw and conveyor chain, making it easy and simple to change the bottle type.

2. All bottle transfers use card bottle technology, and changing bottle types does not require adjusting the height of the equipment. Only the curved guide plate, dial wheel, and other nylon parts related to the diameter of the bottle body need to be replaced+ Specially designed bottle washing machine, with sturdy and durable bottles, high efficiency, and good washing effect.

3. A specially designed bottle flushing machine with sturdy and durable bottle clamps, high efficiency, and good flushing effect.

4. High speed and high flow gravity filling valve, fast filling speed, accurate liquid level without liquid loss; The bottle bottom support plate of the bottle dispensing wheel adopts a spiral descent method, and changing the bottle type does not require adjusting the height of the bottle dispensing conveyor chain.

5. The bottle bottom support plate of the bottle dispensing wheel adopts a spiral descent method, and changing the bottle type does not require adjusting the height of the bottle dispensing conveyor chain.

---

Machine functions

1. Automatic cleaning, automatic filling, and automatic capping.

2. Suitable for filling juice, mineral water, and purified water in polyester bottles and plastic bottles.
