Solution For Carbonated Drinks Filling Line

In the filling machinery industry, we can provide one-stop services such as assembly, bottling, labeling, packaging, palletizing and processing equipment and technical guidance

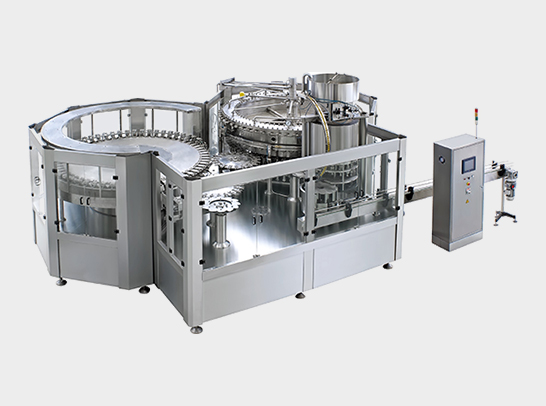

Isobaric Cold Filling 3-In-1 Machine

Uses and characteristics

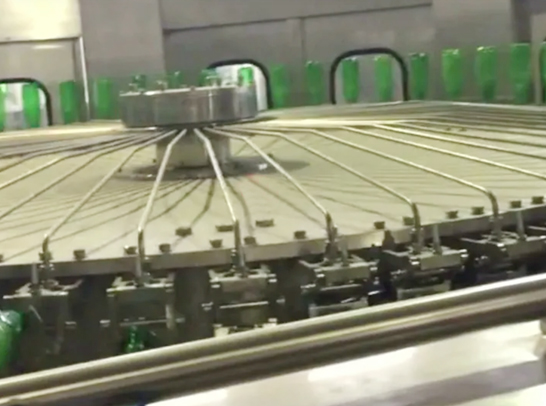

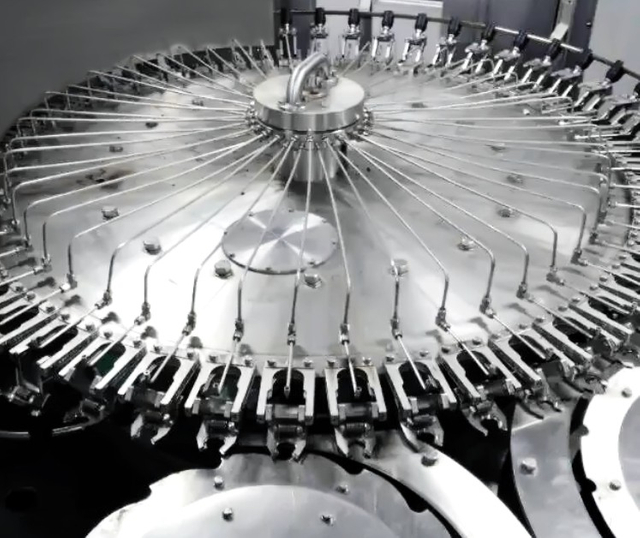

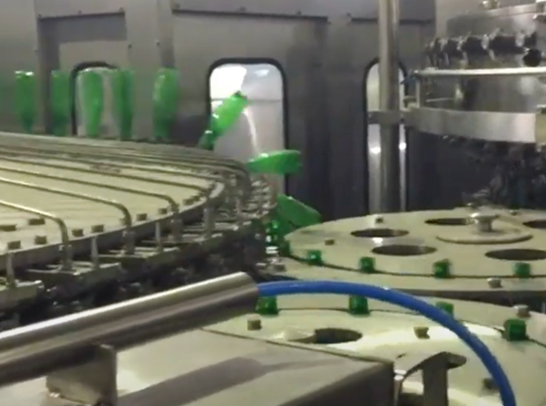

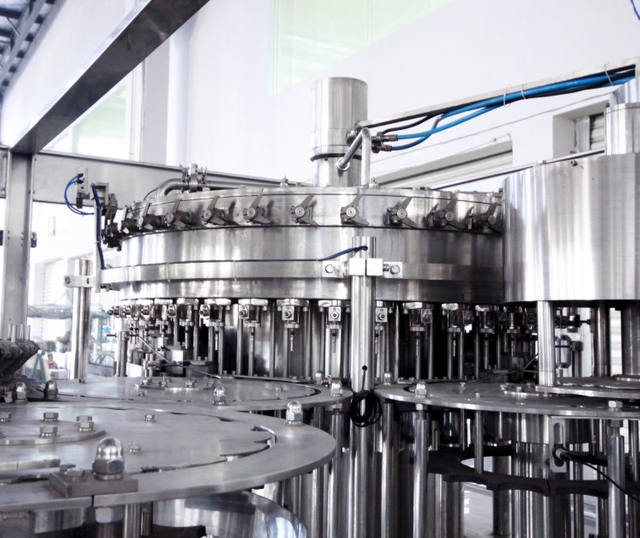

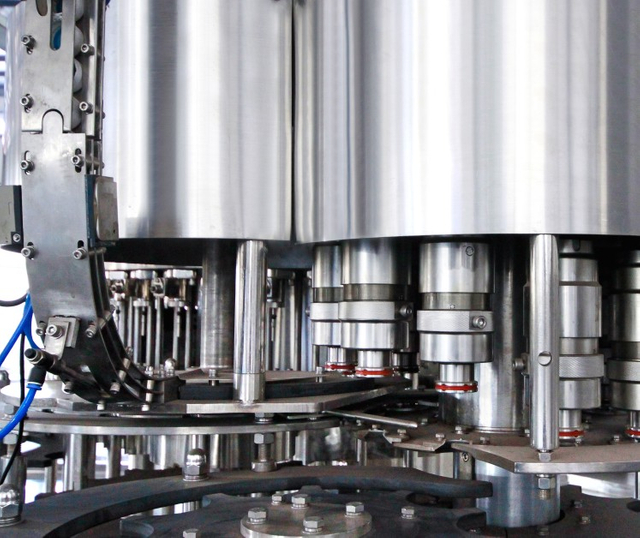

The equipment is used for carbonated soft drink filling with PET bottle. lt combines rinsing, filling and capping into one machine. lt is mainly applicable for rinsing bottle,filling carbonated water, cola, beer and mineral water and seal the plastic screw cap.The machine has advantages of reasonable structure, safe operation reliable working and easy maintenance The bottle transportation adopts neck handling technology, when changing bottle size, no need to adjust machine height,only replace relative parts, such as arc board, thumb etc. The rinser gripper is in stainless steel structure, does not contact with the bottle neck thread spot, avoids the second pollution for the bottle neck. All the parts which contact with the material directly is made of food grade stainless steel, no dead angle, easy to clean. Use pnuematic butterfly valve to control material flow, which can guarantee the high filling precision. Open valve device is driven by the air cylinder, the action is accurate and reliable. High speed, large flow and high accuracy filling valve make the filling speed fast, the liquid level is stable. The capping heads adopt magnetism permanent torque device. which can guarantees the quality of sealing cap, and also does not damage the cap. Use the high effective cap sorte system, which has perfect cap feeding and cap lacking protection device. Equipped with perfect over-load protection to protect the machine and operator's security effectively.

Main technical data

Model DXGF14-12-5 DXGF18-18-6 DXGF24-24-8 DXGF32-32-10 DXGF40-40-10
Capacity bph 2000-3000 3000-4000 4000-6000 5000-8000 10000-12000
Filling accuracy +/-5 mm liquid level positioning
Filling pressure Mpa ≤0.4
Filling temperature 0-4°C
Bottle spec mm Bottle diameter: Ф50-Ф95; Height: 150-310mm
Motor power Kw 2.6 2.8 3.6 5.6 8.6
Height KG 2600 3500 4500 5500 7200
Size mm 2350x1950x2300 2650x1960x2300 3100x2250x2300 3600x2650x2350 3850x2850x2350
Application industries:
Carbonated drinks, soft drinks, sparkling water, soda water, energy drinks, kvass

Why Choose JINDAYUAN Filling Line

Manufacturer

Founded in 2013, our company has many years of R&D and production experience, fully automatic production equipment, standardized operations...

Customized Solutions

Customized solutions for various liquids such as water, fruit juice, gas, alcohol, and oil.



Export Experience

Our equipment has been exported to 36 countries, basically distributed in Southeast Asia, Central Asia, Africa, America and other regions.

Professional Team

Our company has established a complete pre-sales and after-sales system to ensure that customers can purchase with confidence and use with comfort.
