Solution For Beer Filling Line

In the filling machinery industry, we can provide one-stop services such as assembly, bottling, labeling, packaging, palletizing and processing equipment and technical guidance

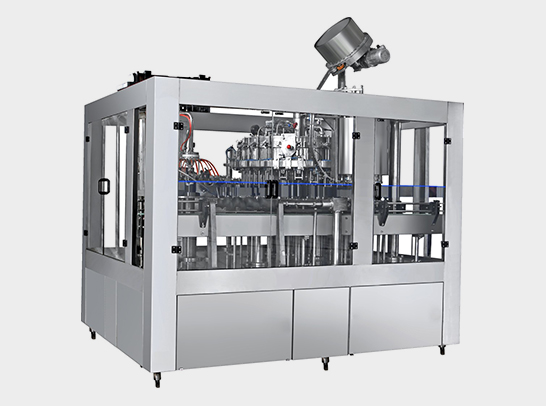

Glass Bottle Filling Machine

Uses and characteristics

This machine has three functions: washing, filling and capping. lt suitable for the beer, white wine, red wine, juice, oil, carbonated drink and other liquid filling in the glass bottles. The machine body is made of the stainless steel. The structure is stable, the controlling system is complete, the operation is easy and the automation is high. All the contact part is made of high quality of stainless steel 304. There is no technological dead corner, so the whole machine is easy to clean. This machine adopts the screw splitting bottle way to make bottles in. lt uses the high speed filling valve to fill, and the liquid level is accurate to make sure the filling technology requirement. The machine also adopts the frequency control and the digital display. lf there is no bottle, the machine will not work and there is the overload set to protect the machine. lt can fill kinds of height of glass bottle The main sealing element is made of imported silica gel. The filling valve can be taken down easily and washed. lt is the ideal filling machine for different beverage filling manufacturers.

Main technical data

Model BXGF14-12-5 BXGF18-18-6 BXGF24-24-6 BXGF32-32-8
Capacity bph 1000-1600 2000-3000 4000-5000 5000-8000
Washing heads 14 18 24 32
Filling heads 12 18 24 32
Capping heads 5 6 6 8
Filling accuracy +/-5 mm liquid level positioning
Motor power Kw 2.6 2.8 3.6 5.6
Height KG 2600 3500 4500 5500
Size mm 2350x1950x2300 2650x1960x2300 3100x2250x2300 3600x2650x2350
Application industries:
Beer, carbonated alcoholic drinks, liquor

Why Choose JINDAYUAN Filling Line

Manufacturer

Founded in 2013, our company has many years of R&D and production experience, fully automatic production equipment, standardized operations...

Customized Solutions

Customized solutions for various liquids such as water, fruit juice, gas, alcohol, and oil.



Export Experience

Our equipment has been exported to 36 countries, basically distributed in Southeast Asia, Central Asia, Africa, America and other regions.

Professional Team

Our company has established a complete pre-sales and after-sales system to ensure that customers can purchase with confidence and use with comfort.

More Filling Machine

In the filling machinery industry, we can provide one-stop services such as assembly, bottling, labeling, packaging, palletizing and processing equipment and technical guidance
