Solution For Water Filling Line

In the filling machinery industry, we can provide one-stop services such as assembly, bottling, labeling, packaging, palletizing and processing equipment and technical guidance

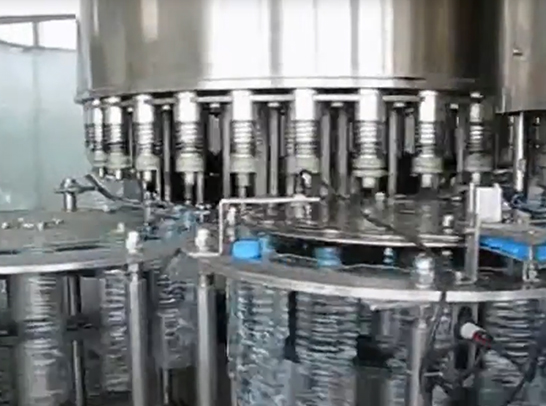

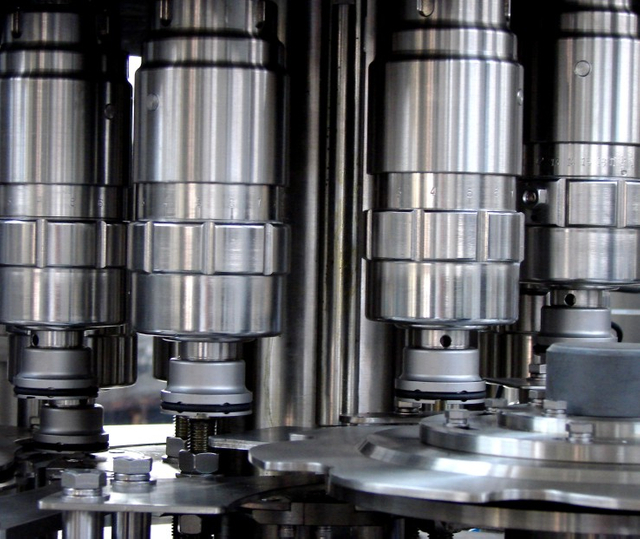

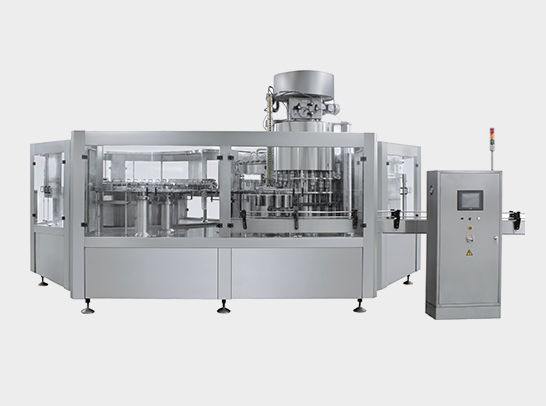

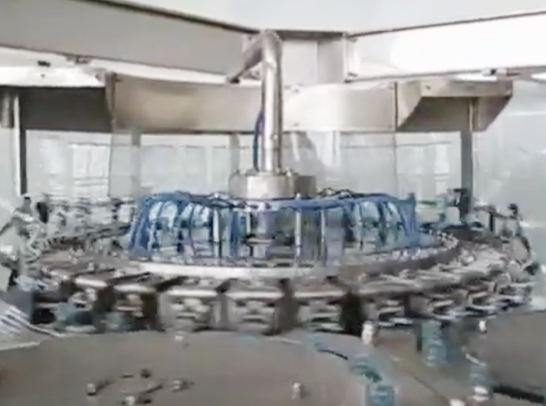

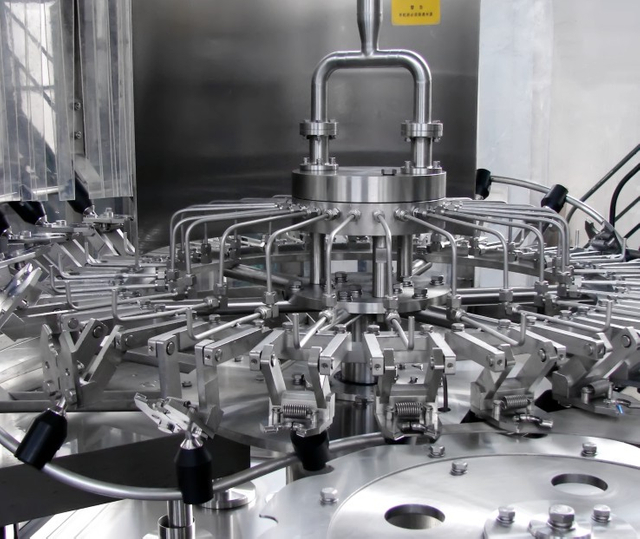

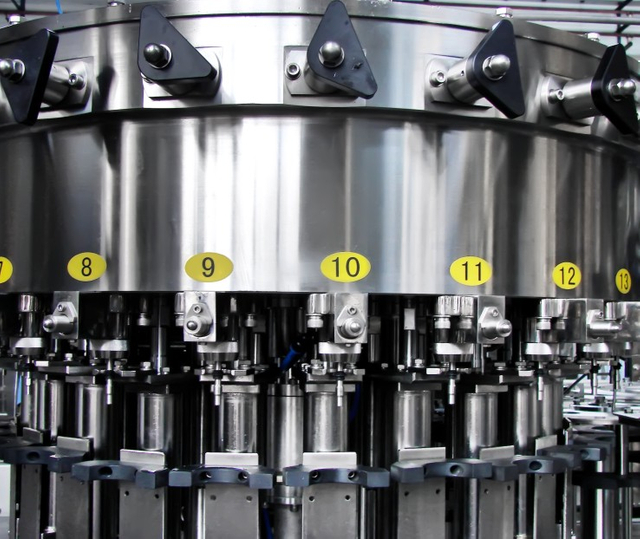

Washing-Filling-Capping 3-In-1 Machine

Uses and characteristics

The machine mainly used in the beverage filling operations. The three functions of bottle washing, filling and capping are composed in one body of the machine The whole process is automatic. The machine is used to fill mineral water and purified water in bottles made of polyester and plastics.The machine is conveniently turned to adjust the machine to fill various types of bottles. The filling operation is faster and more stable due to the micro-negative pressure filling operation of the new type is adopted. The output and benefit of the machine is higher than the machines of the same specifications. The advanced OMRON programmed controller(PLC)is adapted to control the machine runs automatically,air conveyor system is adopted in bottle entry section and belt conveyor system is adopted in bottle exit section, which can adjust speed and coordinated with transducer of the main machine to make the output of moving bottle forward steadily and reliably. It is convenient to operate with higher automation due to every parts of the machine which is inspected to run with photo electrical detector. The machine is ideal-preferred equipment for beverage makers.

Main technical data

Model CXGF8-8-3 CXGF14-12-5 CXGF16-16-6 CXGF18-18-6 CXGF24-24-8 CXGF32-32-10 CXGF40-40-10
Capacity bph 2000-2500 3000-4000 5000-6000 7000-8000 10000 13000-15000 18000-20000
Filling accuracy +/-5 mm liquid level positioning
Filling heads 8 12 16 18 24 32 40
Washing heads 8 14 16 18 24 32 40
Capping heads 3 5 6 6 8 10 10
Bottle spec mm Bottle diameter: Ф35-Ф95; Height: 120-310 mm
Motor power Kw 2.2  2.2  2.6  2.8 3.6 5.6 8.6
Height KG 2000 2600 3000 3500 4500 5500 7200
Size mm 2200*1900*2250 2350*1950*2300 2450*1960*2300 2650*1960*2300 3100*2250*2300 3600*2650*2350 3850*2850*2350
Application industries:
Still water, RO water, mineral water, drinking water

Why Choose JINDAYUAN Filling Line

Manufacturer

Founded in 2013, our company has many years of R&D and production experience, fully automatic production equipment, standardized operations...

Customized Solutions

Customized solutions for various liquids such as water, fruit juice, gas, alcohol, and oil.



Export Experience

Our equipment has been exported to 36 countries, basically distributed in Southeast Asia, Central Asia, Africa, America and other regions.

Professional Team

Our company has established a complete pre-sales and after-sales system to ensure that customers can purchase with confidence and use with comfort.
