Solution For Juice Filling Line

In the filling machinery industry, we can provide one-stop services such as assembly, bottling, labeling, packaging, palletizing and processing equipment and technical guidance

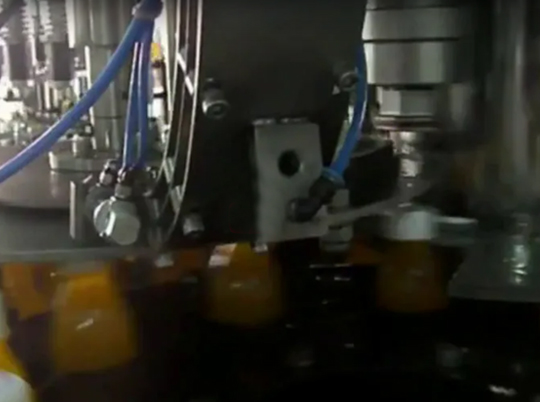

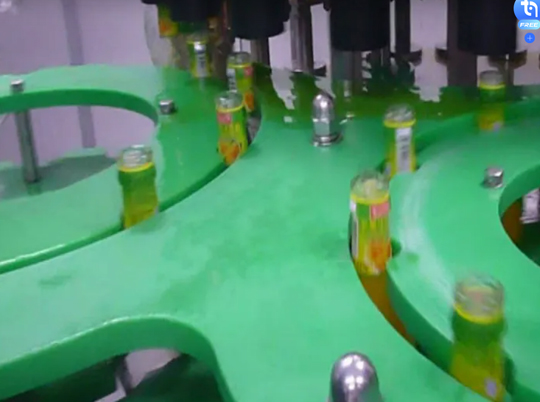

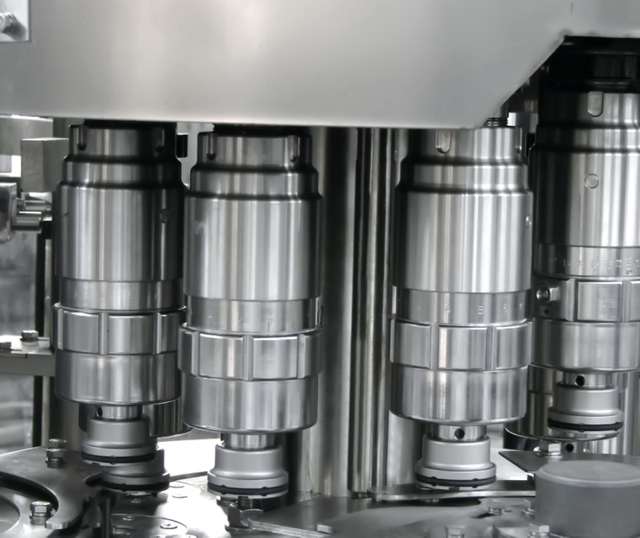

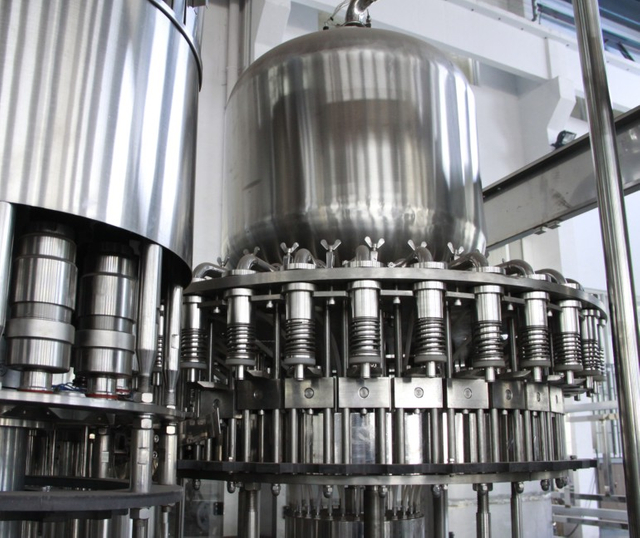

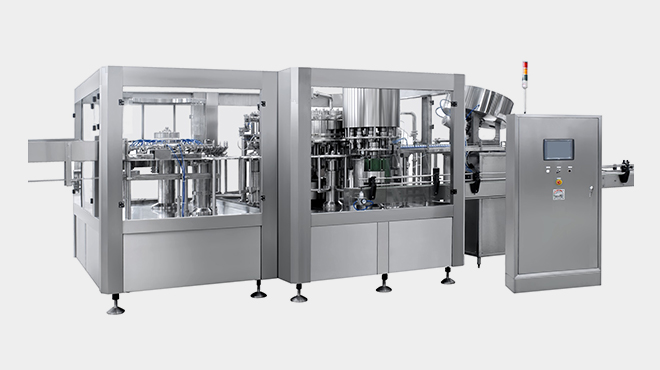

High Temperature Filling 3-In-1 Machine

Uses and characteristics

This machine is used for hot filling production of green tea, black tea, oolong tea and fruit drinks. This machine adopts PLC, inverter and human-machine interface control system. lt has advanced control technologies such as variable frequency speed regulation, automatic filling with bottles, and no filling without bottles. Through various sensors on the equipment, it can display the accurate production speed and production quantity on the touch screen. Set it on the touch screen. The machine integrates flushing, filling and sealing. The design is scientific and reasonable, the appearance is beautiful, the operation and maintenance are convenient, and the degree of automation is high. lt is the preferred production equipment for hot filling beverages

Main technical data

Model RXGF14-12-5 RXGF16-16-6 RXGF18-18-6 RXGF24-24-8 RXGF32-32-10 RXGF40-40-10
Capacity bph 3000-4000 5000-6000 7000-8000 10000 13000-15000 18000-20000
Filling accuracy +/-5 mm liquid level positioning
Bottle spec mm Bottle diameter: Ф35-Ф95; Height: 120-310mm
Washing water kg/h 300 500 600 800 1500 2000
Air pressure Mpa 0.6 0.6 0.6 0.6 0.6 0.6
Air consumption m³ /min 0.16 0.16 0.16 0.2 0.3 0.4
Motor power Kw 2.6 2.6 2.8 3.6 5.6 8.6
Height KG 2600 3000 3500 4500 5500 7200
Size mm 2350x1950x2300 2450x1960x2300 2650x1960x2300 3100x2250x2300 3600x2650x2350 3850x2850x2350
Application industries:
Juice, tea, energy drinks, vitamin drinks, functional beverage

Why Choose JINDAYUAN Filling Line

Manufacturer

Founded in 2013, our company has many years of R&D and production experience, fully automatic production equipment, standardized operations...

Customized Solutions

Customized solutions for various liquids such as water, fruit juice, gas, alcohol, and oil.



Export Experience

Our equipment has been exported to 36 countries, basically distributed in Southeast Asia, Central Asia, Africa, America and other regions.

Professional Team

Our company has established a complete pre-sales and after-sales system to ensure that customers can purchase with confidence and use with comfort.

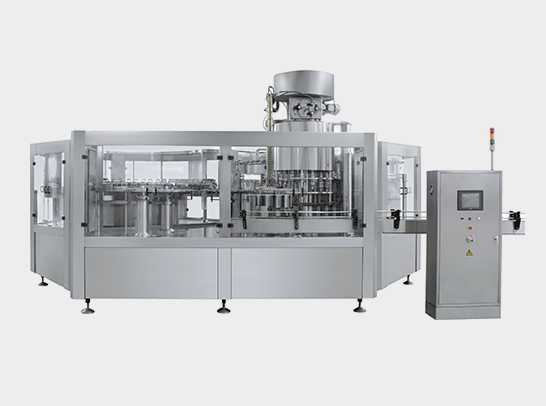

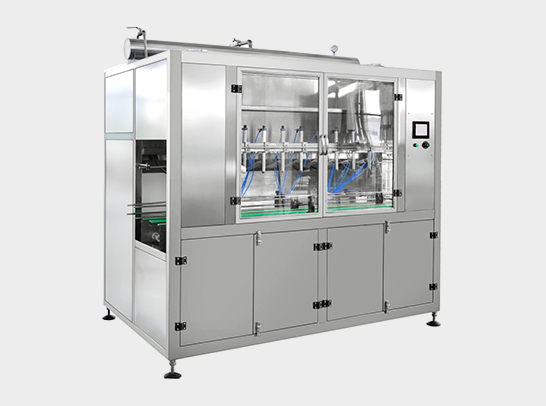

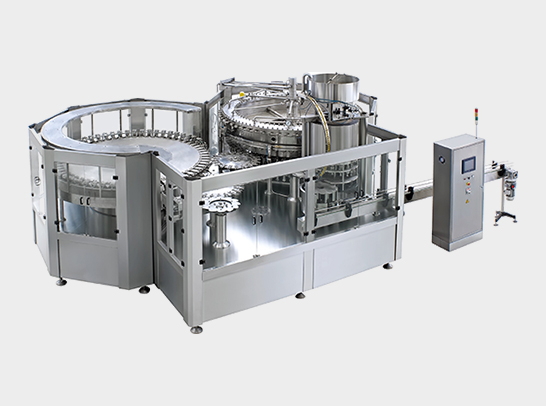

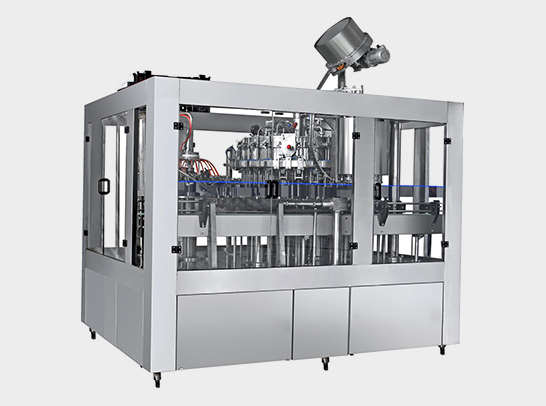

More Filling Machine
