Solution For Oil Filling Line

In the filling machinery industry, we can provide one-stop services such as assembly, bottling, labeling, packaging, palletizing and processing equipment and technical guidance

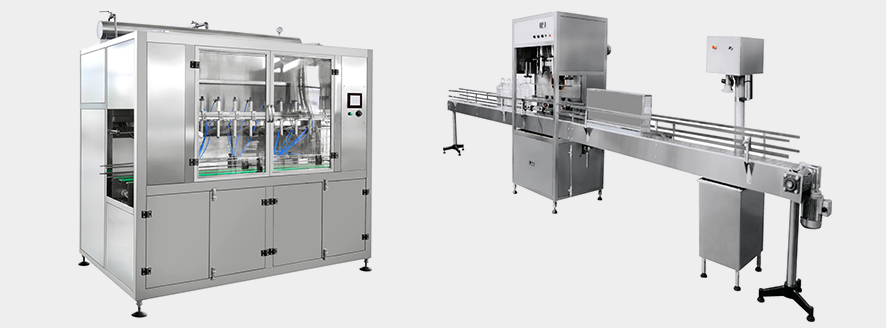

Oil Filling Unit

Uses and characteristics

The filling equipment has two types such as rotary type and linear type for customers to select. The filling volume can be freely adjusted within 250ML-2000ML. It is featured by LCD display, accurate quantitation, and free of dripping and leakage during the filling. The dialing wheel for bottle input and output is provided with the overload clutch protector, which will send alarms and stop the machine in case of abnormal situations. lt is an oil filling machine of high efficiency and high intelligence.

Main technical data

Model	XGF-12-4	XGF-16-6	XGF-24-8	XGF-32-10
Filling heads	12	16	24	32
Capping heads	4	6	8	10
Capacity(bph)	2000--4000	4000--5000	6000--8000	8000--12000
Power(kw)	2.2	2.6	3.6	6.1
Weight(kg)	1300	2200	3000	4500
Dimension(mm)	2350x1950x2300	2650x1960x2300	3100x2250x2300	600x2650x2350

Application industries:

Edible oil, honey, viscous product
