Small bottle Filling Machine

This machine is designed for the production of non-soda beverages, including fruit juice, fruit wine, mineral water, and purified water, packaged in polyester (PET) bottles. It integrates washing, filling, and capping into a single system.




Availability:
Quantity:

This machine is designed for the production of non-soda beverages, including fruit juice, fruit wine, mineral water, and purified water, packaged in polyester (PET) bottles. It integrates washing, filling, and capping into a single system.

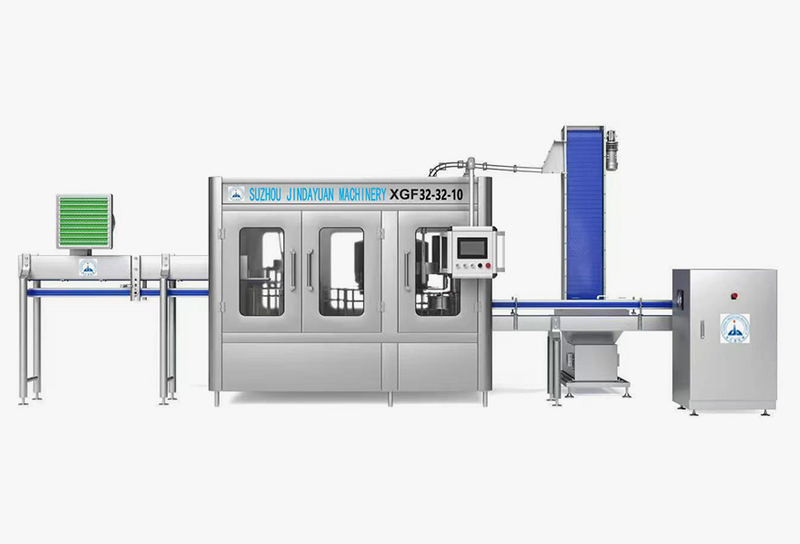

32-32-10


Key Features:
1. Suspended Bottle-Neck Handling
- Bottles are held by their necks and remain suspended during operation, preventing malfunctions caused by thin bottle walls or inconsistent bottle heights.
- This design significantly reduces the number of changeable parts, enabling faster and more convenient bottle-type switching.

2. Precision Filling Technology
- Incorporates advanced gravity-fixed liquid surface filling (Japanese/German technology) for fast, accurate filling volumes without dripping or leakage.

3. High-Efficiency Bottle Washing
- Utilizes spring clamps to secure bottles, allowing them to rotate 180° along the conveyor.
- Performs dual internal and external washing, ensuring thorough cleaning.

4. Reliable Magnetic Torque Capping

- Features stepless adjustable capping torque to prevent cap damage while ensuring a secure seal.
- Torque can also be preset for consistent performance.

5. Gentle Cap Handling & Automated Supply
- Horizontal swirl air-powered cap sorting avoids surface damage.
- Includes an auto-feed system and low-capacity alarm to prevent interruptions.

6. Premium Materials & Components
- All water-contact parts are SUS304 stainless steel.
- Critical electronics from Mitsubishi (Japan) and Siemens; pneumatic components sourced from Japan and Italy.

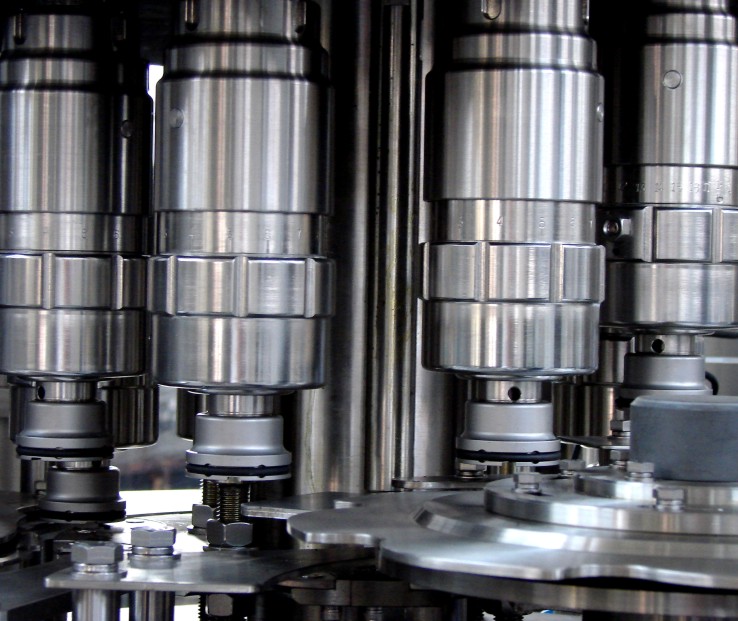

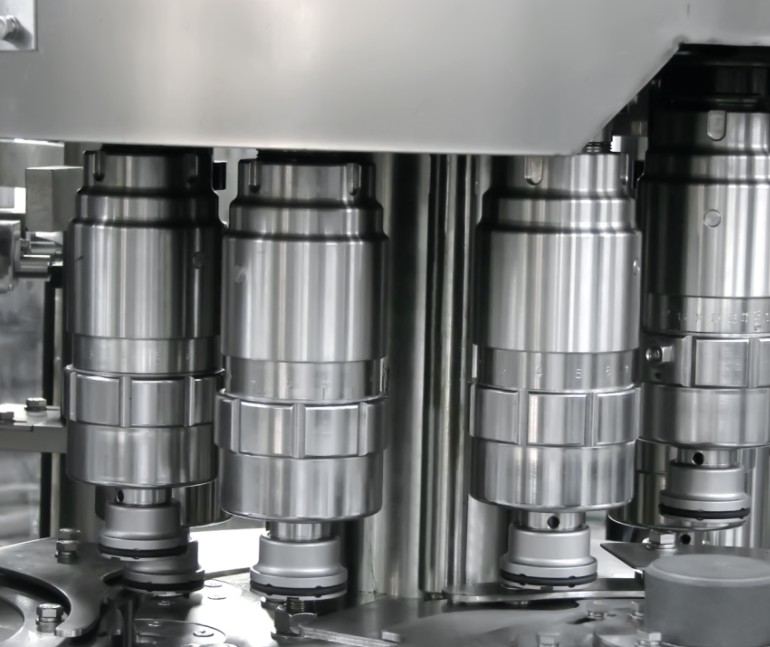

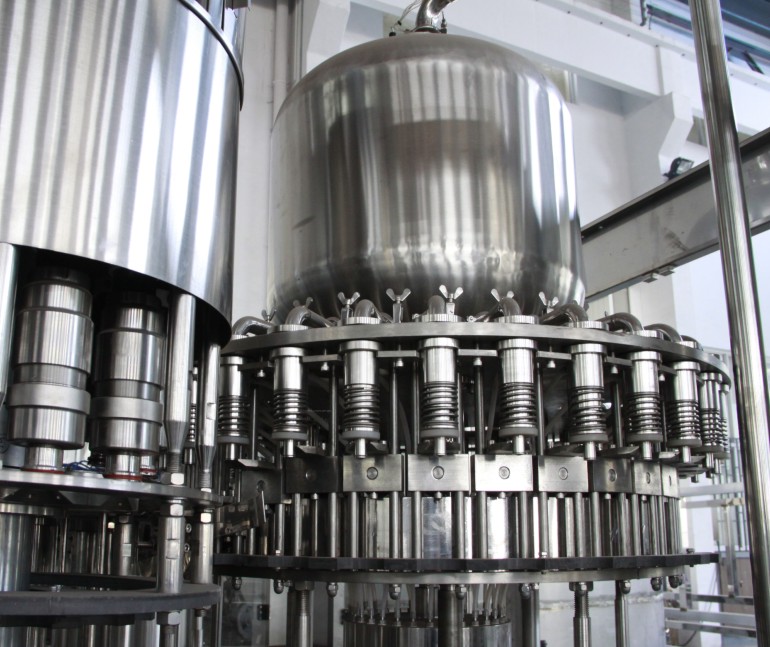

Juice Filling Line2 Juice Filling Line3 05



Main technical data:


Model

XGF60-60-18

Production apacity

(500ml/B/H)


25000-36000

Filling Heads

60

Washing Heads

60

Capping Heads

18

Applicable Bottle

Type

Round or Square

Diameter of Bottle mm

φ50-φ90

Height of

Bottle(mm)

150-310

Air Pressure Mpa

0.3-0.7

Washing Medium

Aseptic Water

Washing Medium Mpa

0.06-0.2Mpa

Total Power(kw)

4.4
Overal Size(mm) 5900x2800x2500
Weight(KG) 9500



Main components brand:

S.N.

Name


1

Touch screen

Siemens, Germany

2

Transducer

Siemens, Germany

3

Main electric appliance

Siemens, Germany

4

PLC

Siemens, Germany

5

Contactor

Siemens, Germany

6

Sensor

Korean, Autonics

7

Proximity Sensor

Korean, Autonics

8

Fiber Swith

Korean, Autonics

9

Pneumatic component

Airtac, Taiwan

1745477308810

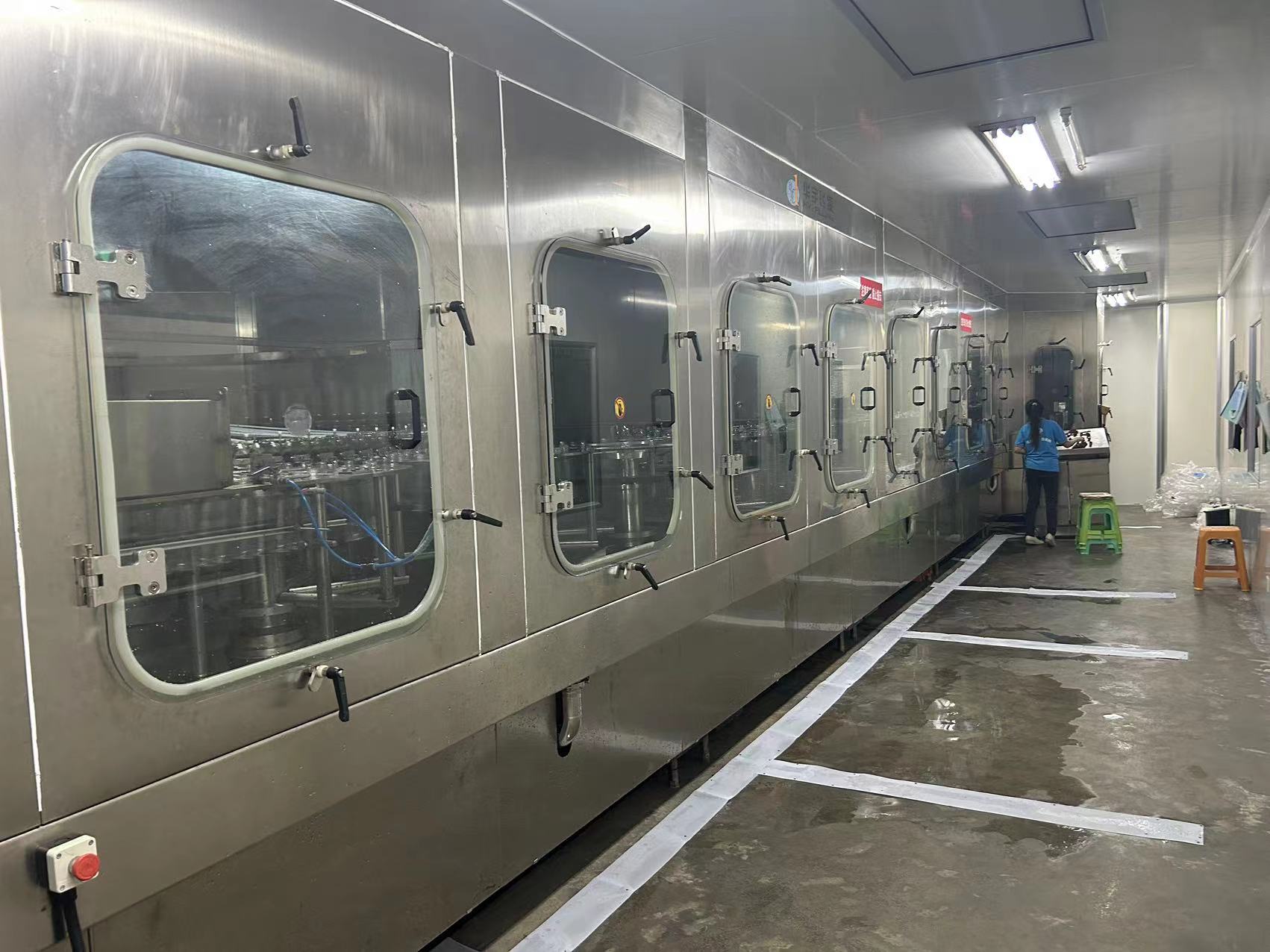

XGF60-60-18
